Rivet Buster Jumbo Air Hammer – 11" Stroke Pneumatic, D & P Handle

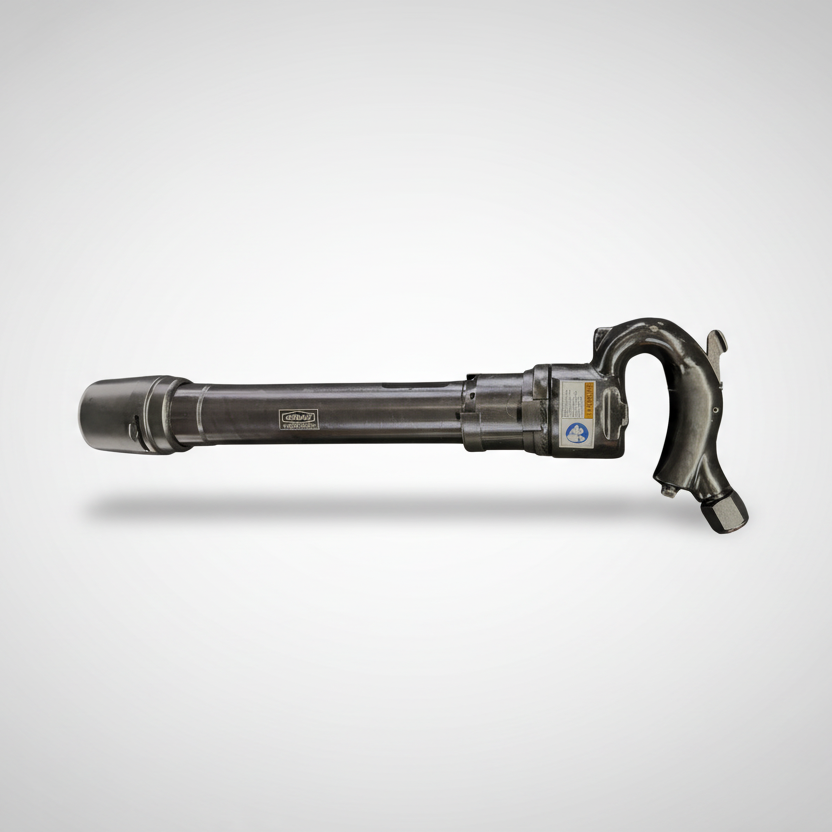

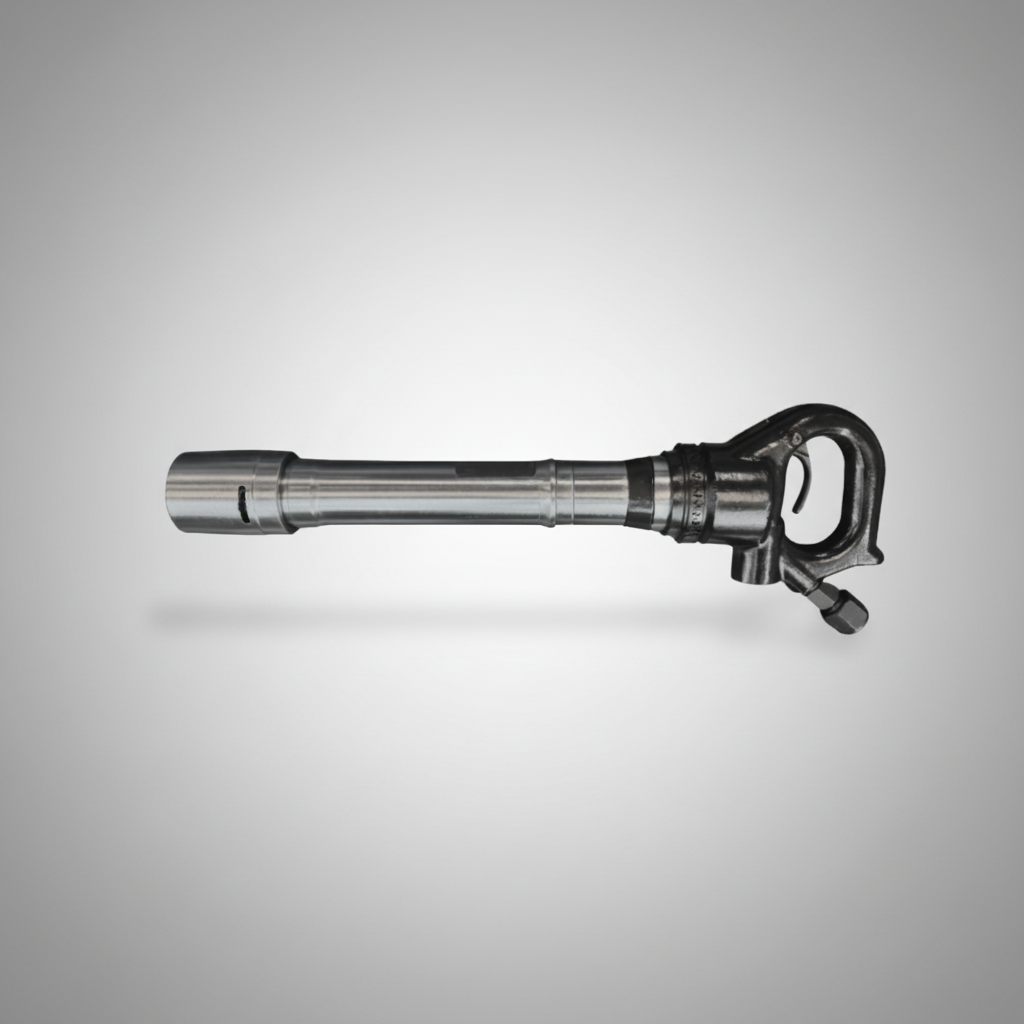

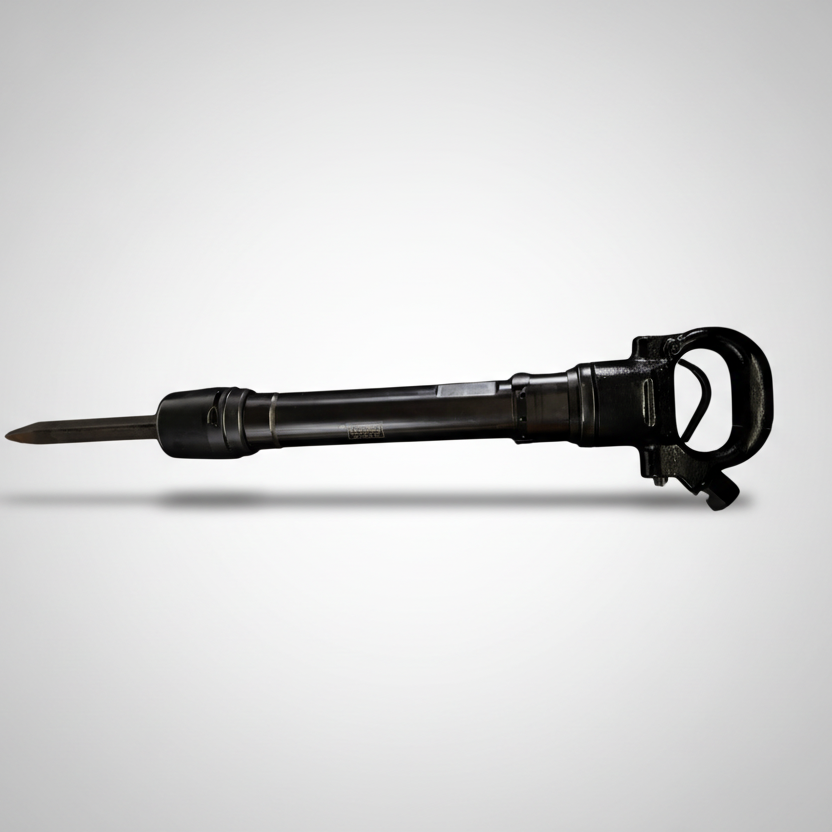

The Madido Rivet Buster is a Jumbo (11X) pneumatic air hammer built in Montreal for cutting rivets, shearing bolts and demolishing steel and concrete. With an 11" stroke, a 720 BPM blow rate and a body weighing about 34 lb, it delivers the impact of a much heavier breaker in a tool one person can control all shift. Available with a closed D handle (models 4111 and 1133) or an open P handle (model 4111).

Originally designed for removing rivets from steel bridges and structures, the rivet buster is now a go-to tool for steel demolition, tank cutting and concrete breaking. It takes standard Jumbo (11X, .866" hex) rivet buster steel, so you can fit moil points, chisels, punches and pin drivers.

Key Features

• Heavy impact, low weight: 11" stroke piston delivers a hard, controllable blow at a low blow frequency
• Jumbo (11X) shank: uses standard Jumbo rivet buster tools in many lengths and point styles
• Choice of handle: closed D handle for working in tight spaces, or open P handle
• Built for the job site: forged and machined in Madido's Montreal facility to take punishing, daily use
• Operator control: balanced body reduces fatigue and keeps cuts precise during long shifts
• Parts support: parts diagrams below, plus air inlet bushings and wear parts
• Made in Canada by Madido

Specifications

The open P handle (model 4111) uses the same Jumbo shank and 11" stroke. Air tool only: air hose, tools and steel are sold separately.

Applications

• Cutting off rivets and bolts on steel bridges, bridge decks and structural steel
• Steel demolition and dismantling of structures
• Cutting and opening underground and industrial tanks
• Ship hull and boiler repair and scrapping
• Breaking concrete and removing refractory and foundry lining
• Heavy industrial demolition, foundries and fabrication shops

Compatible Tools and Accessories

Fits Jumbo (11X) rivet buster steel, including moil points, narrow chisels, 2" wide chisels, 3" wide chisels and taper backout punches.

Air Supply Requirements

Run the rivet buster on a compressor that delivers at least 45 CFM at 90 psi, with a 1/2" or larger air hose and an in-line oiler. Always wear eye protection, hearing protection, gloves and safety shoes.

Frequently Asked Questions

What is a rivet buster? A rivet buster is a high-impact pneumatic air hammer designed to cut rivets and bolts off steel structures. Pound for pound it delivers more impact than a paving breaker, so it is also widely used for demolition and tank cutting.

What shank does this rivet buster use? Jumbo (also called 11X) hex shank, .866" across the flats.

What size compressor do I need? About 45 CFM at 90 psi (44.5 CFM at 90 psi for this model).

Is it made in Canada? Yes. Madido forges and machines its rivet busters in Montreal, Quebec.

Looking for an alternative to a CP 4611, APT 1133 or Texas Pneumatic TX133 style Jumbo rivet buster? Compare the specifications above, or contact the Madido team for help choosing the right model.

Parts Diagrams:

• D Handle 1133 (Closed)
• D Handle 4111 (Closed)
• P Handle 4111 (Open)

Chicago Pneumatic, APT and Texas Pneumatic are trademarks of their respective owners and are used here only to describe compatibility and comparison. Madido is not affiliated with or endorsed by these companies.
