Madido  |  SKU: AC-BBD12D

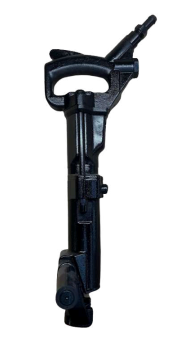

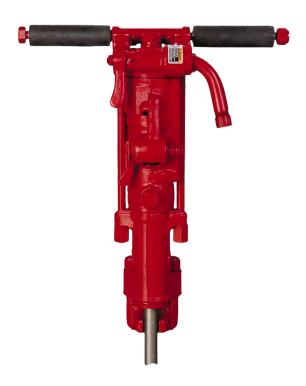

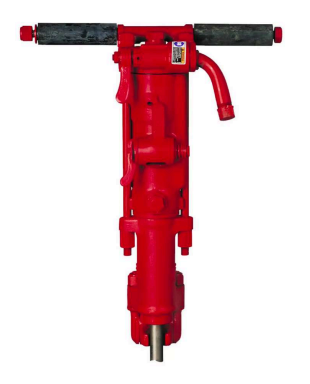

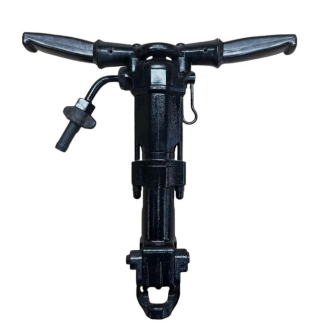

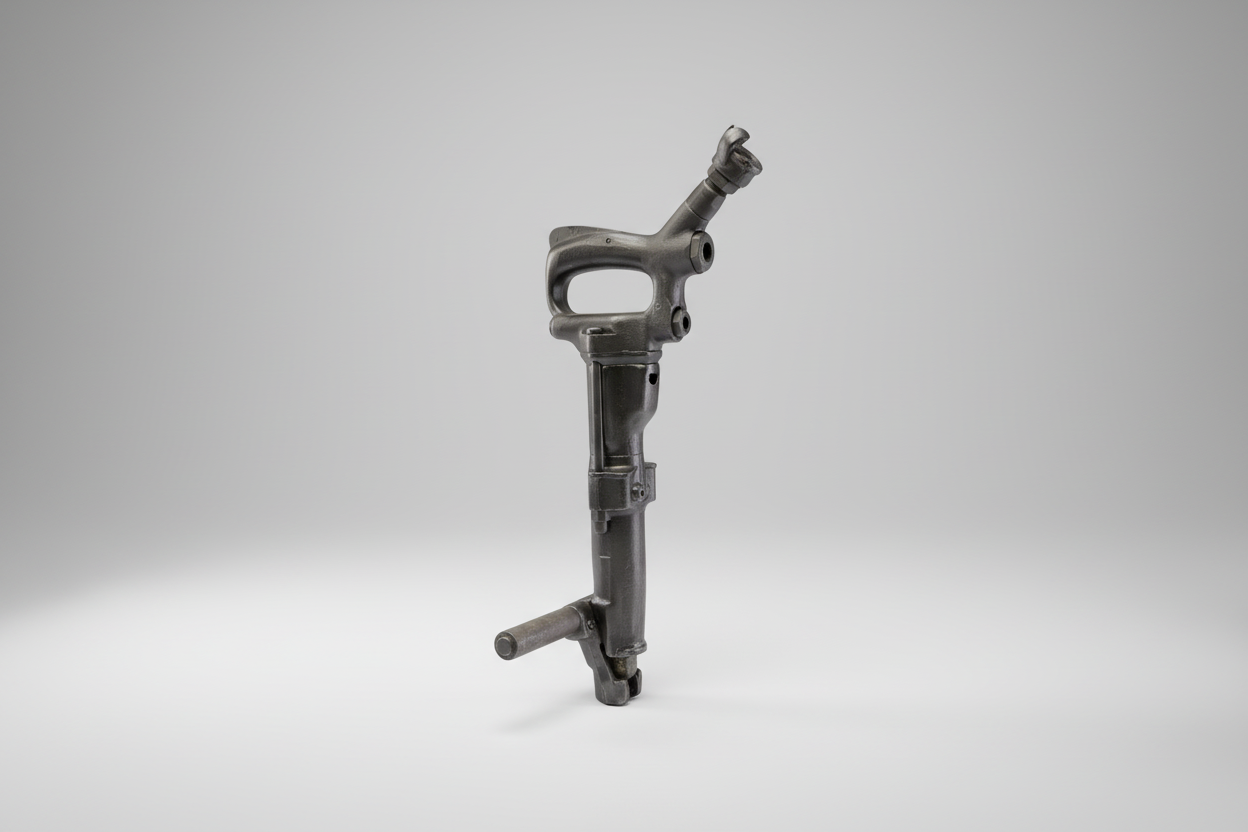

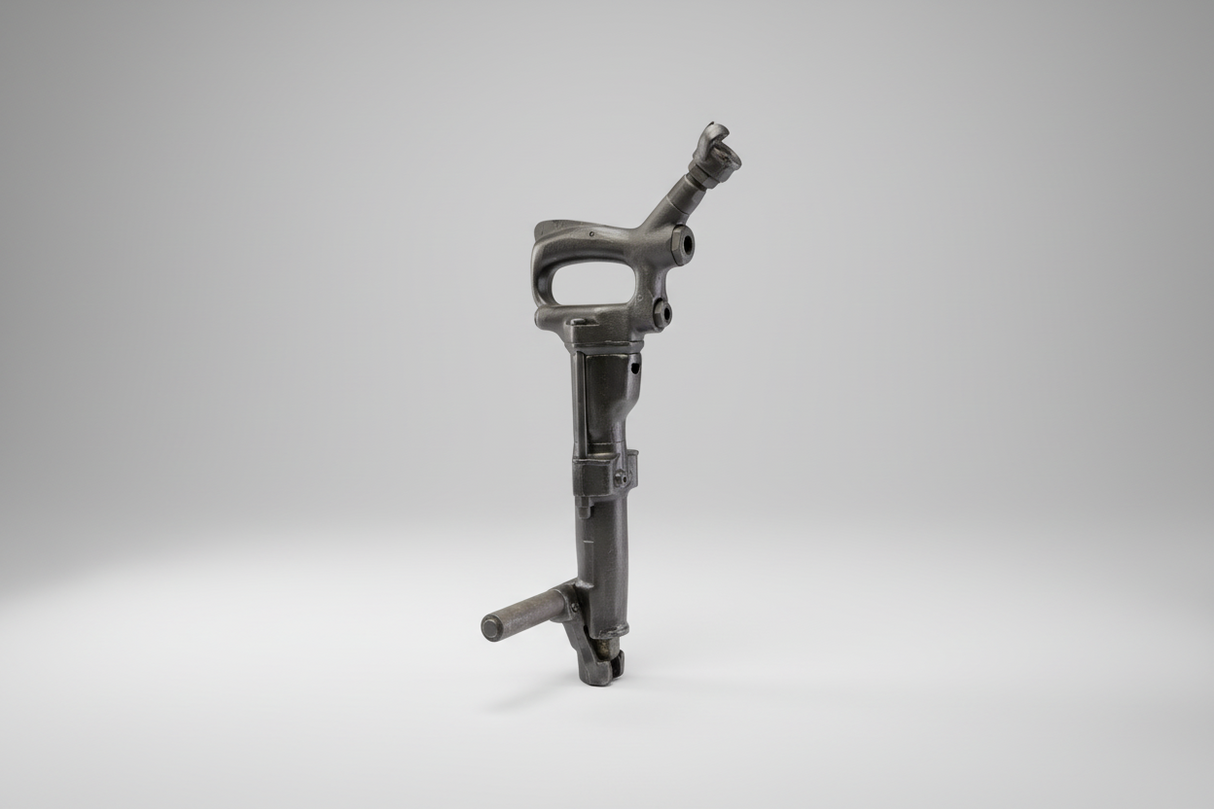

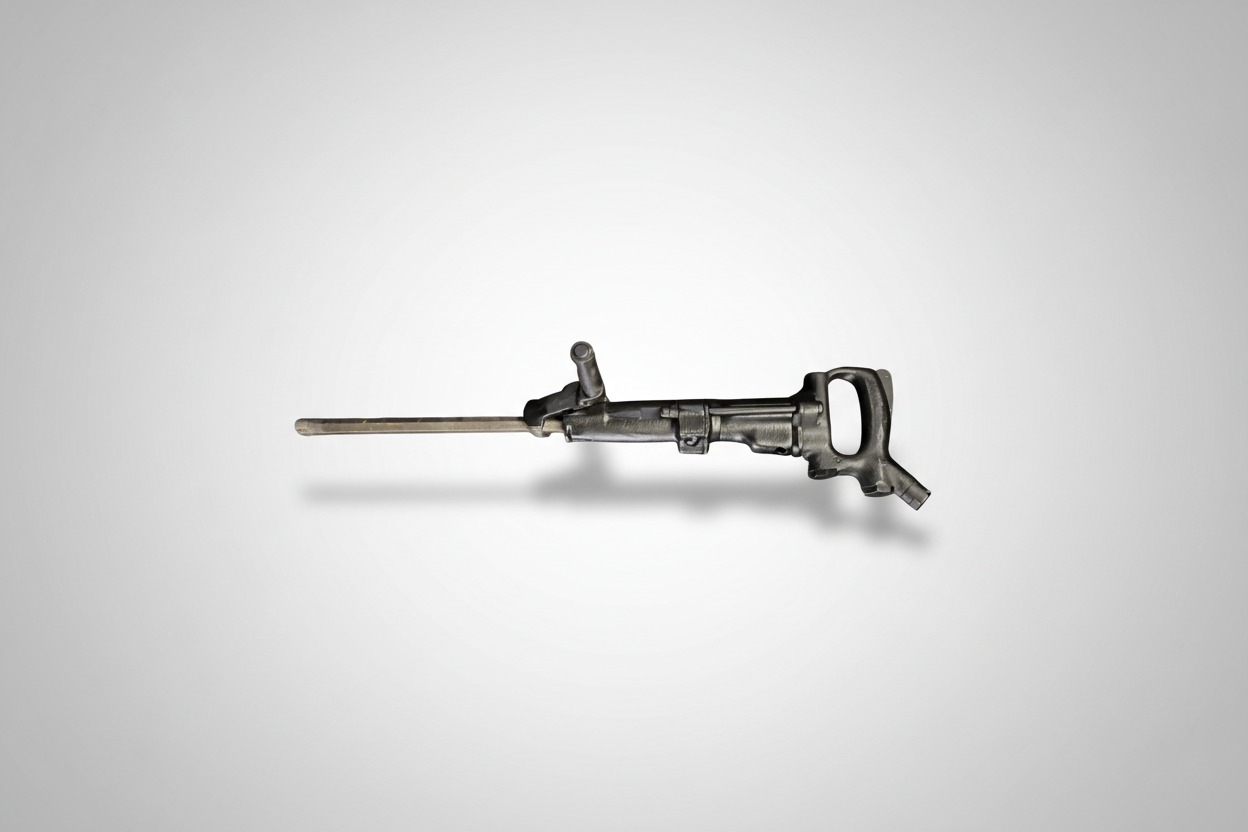

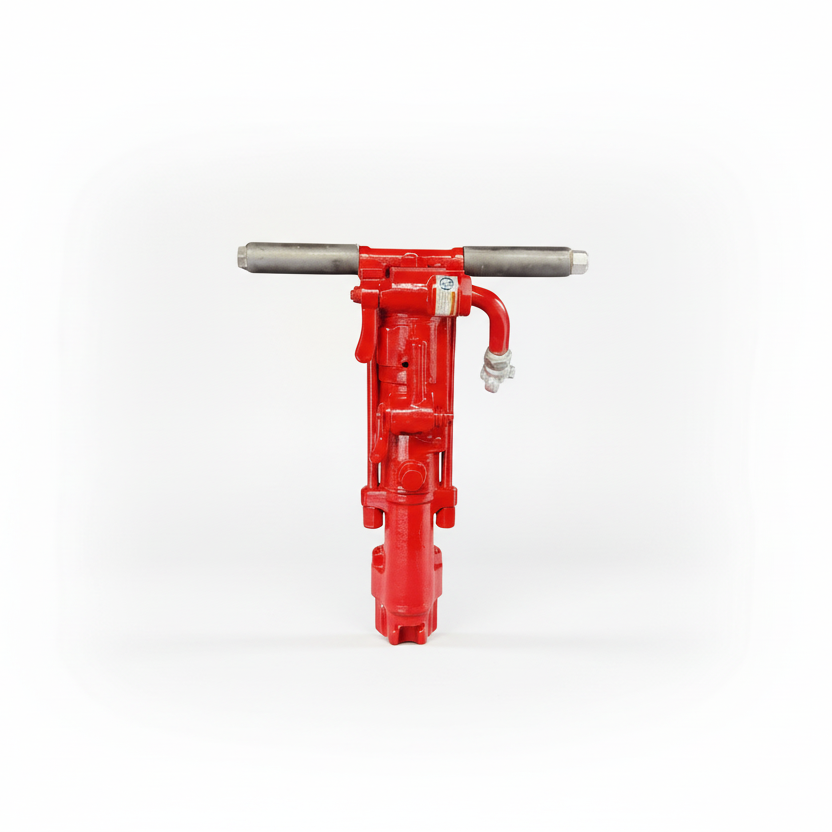

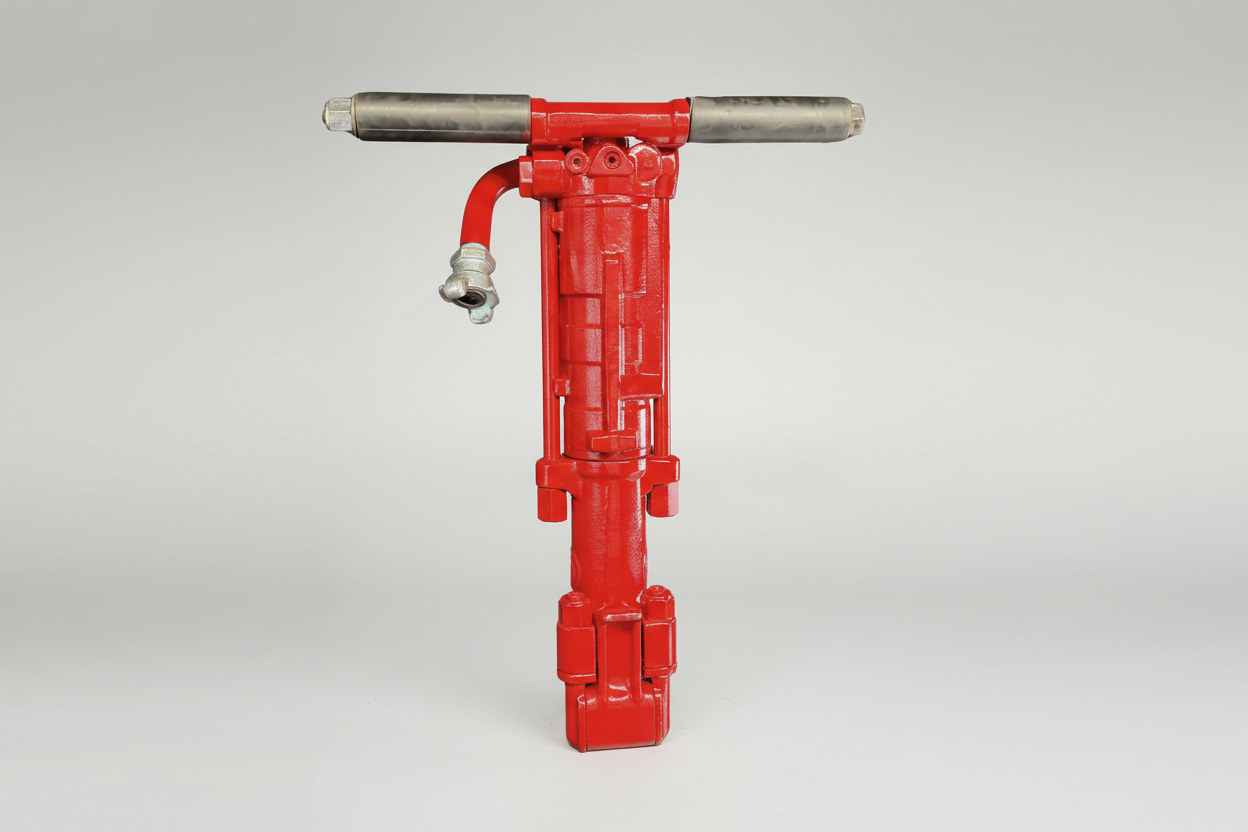

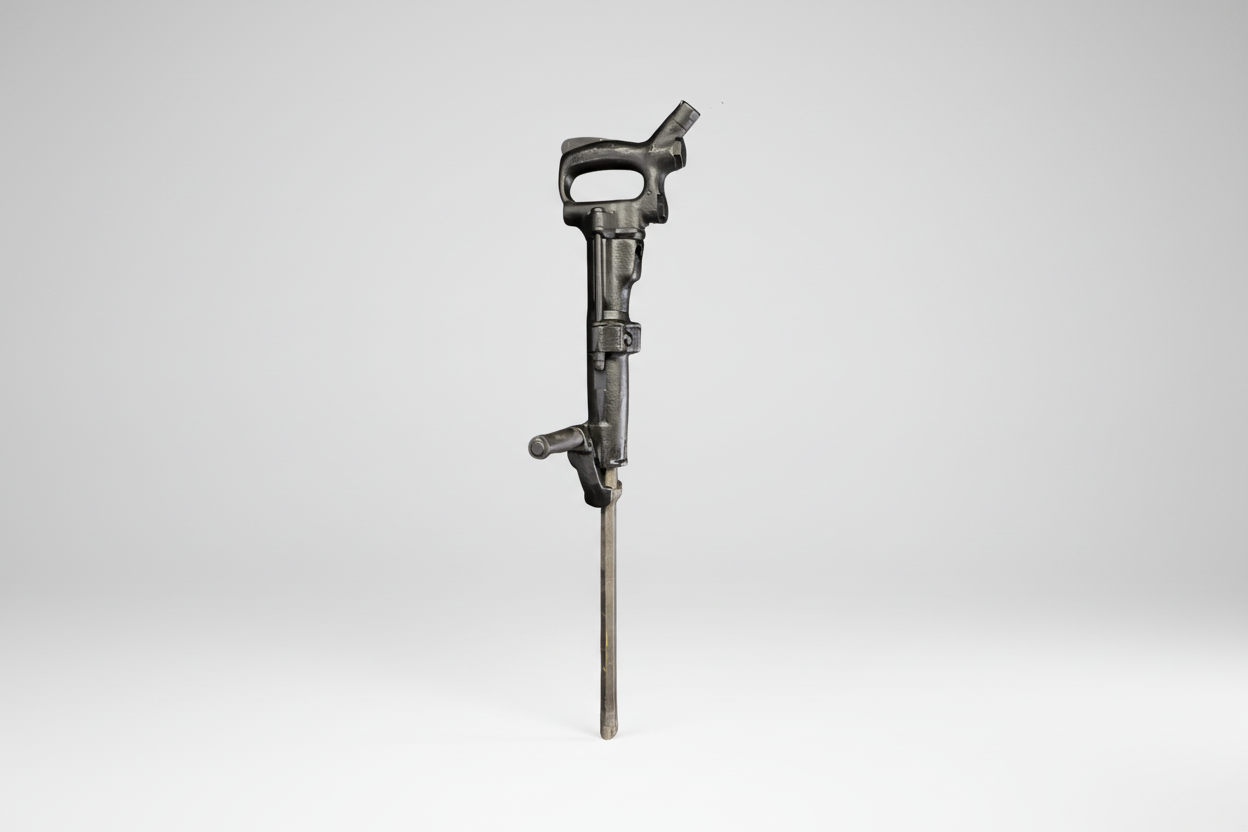

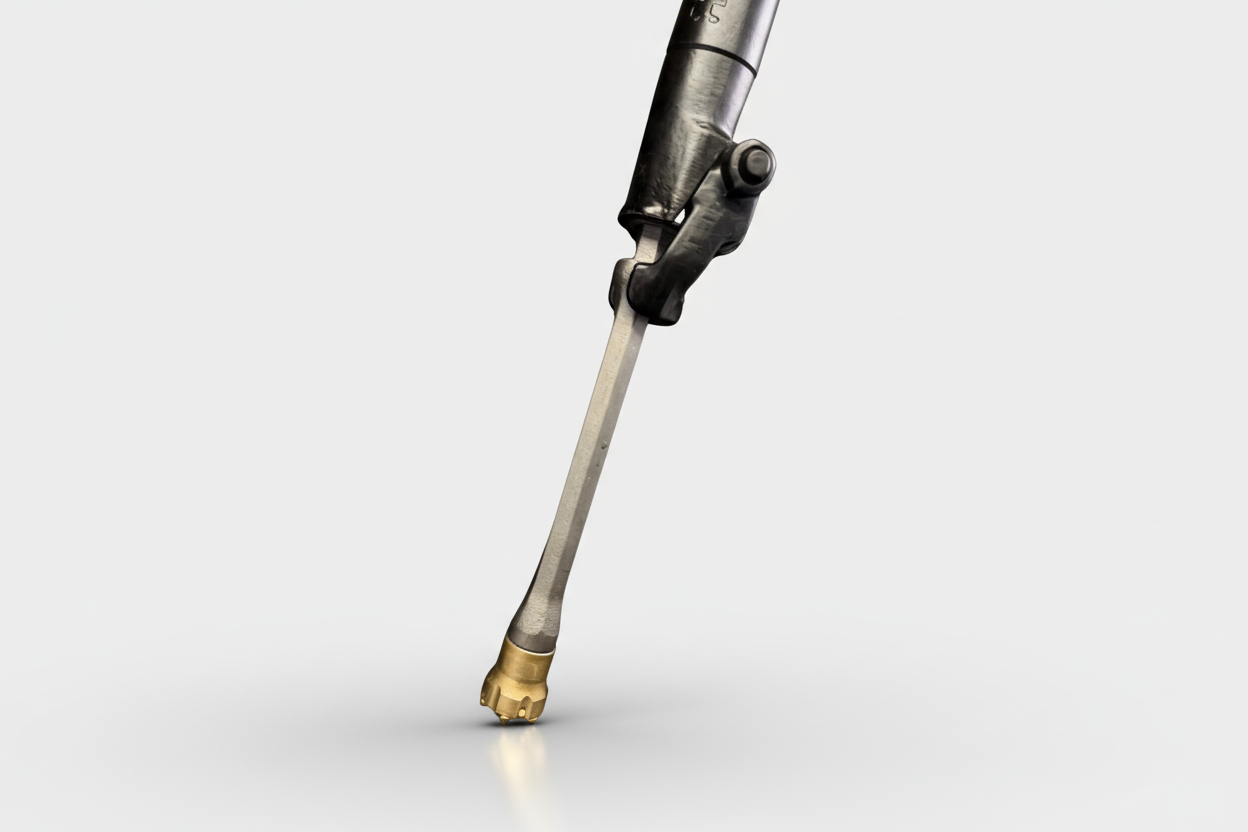

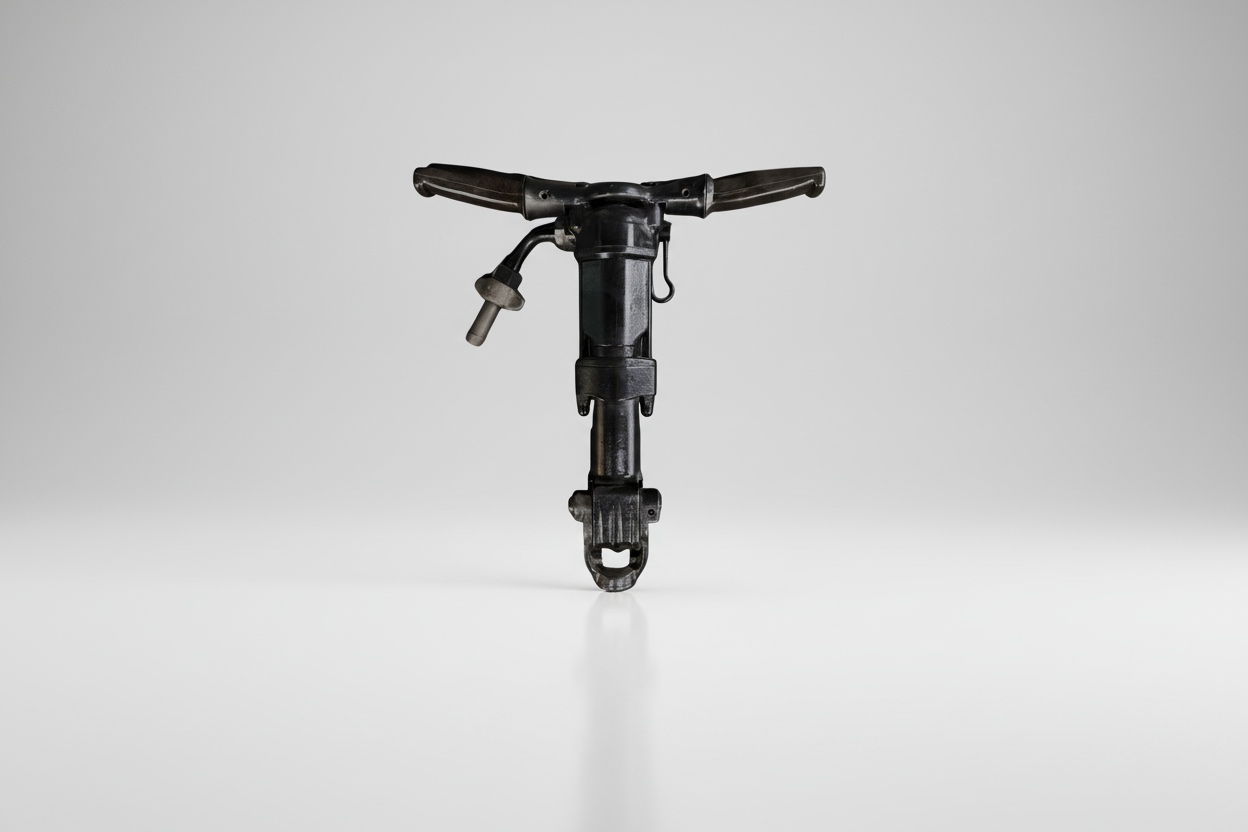

Sinker Drill

Regular price $2,500.00


Drill Type

Description & Specifications

Description

The Madido Sinker Drill is engineered for high-performance rock drilling in mining, construction, and heavy industrial applications. Built at our Montreal foundry with rugged durability in mind, this drill delivers exceptional power, reliability, and operator control even in the toughest drilling environments.

  • Heavy-Duty Construction – Forged and precision-machined to withstand extreme impact and abrasion.

  • Powerful Drilling Performance – Designed to penetrate rock, concrete, and other hard materials with efficiency.

  • Operator Comfort & Control – Balanced design reduces fatigue during continuous use.

  • Versatile Applications – Ideal for mining operations, quarry work, tunneling, and general construction.

  • Canadian Manufacturing – Proudly made in Montreal, ensuring consistent quality and long service life.

When the job demands reliability and raw drilling power, the Madido Sinker Drill is the tool professionals trust to get it done.

Specifications

  • Shank Size
    22 x 108 mm (⅞" x 4¼")
  • Piston Diameter
    45 mm / 1.77"
  • Air Consumption
    24 l/s (51 cfm)
  • Air Pressure
    6 bar (87 psi)
  • Piston Stroke
    41 mm / 1.61"
  • Blows Per Minute
    2580
  • Length
    565 (22.2")
  • Weight
    9.8 kg (21.6 lb)
  • Hole Range
    17 - 29 (0.67" - 1.14")
  • Hole Depth
    1 m / 3.28 ft
  • Revolutions
    220 rpm
