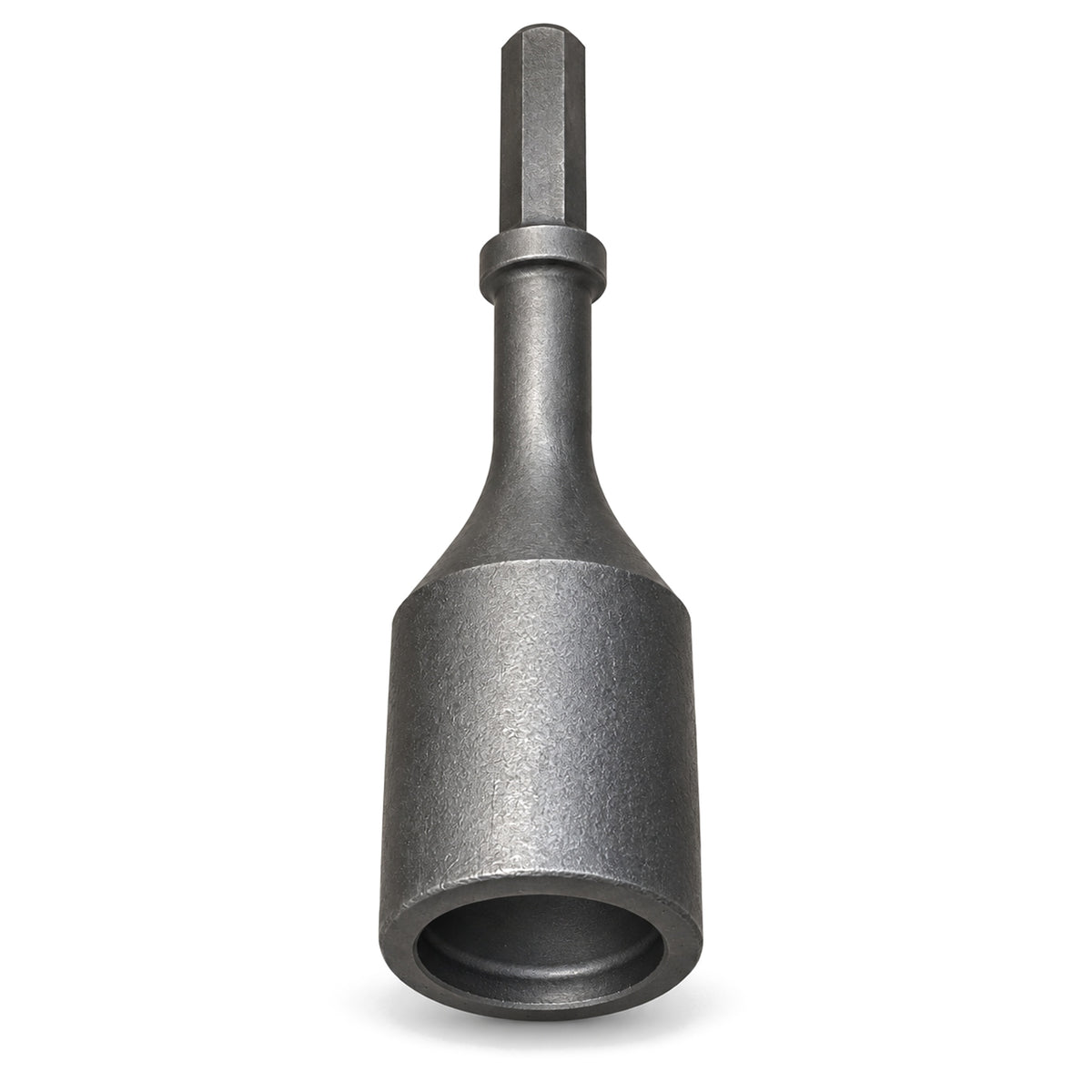

Railroad Spike Driver – 1-1/8" Hex × 6" Shank

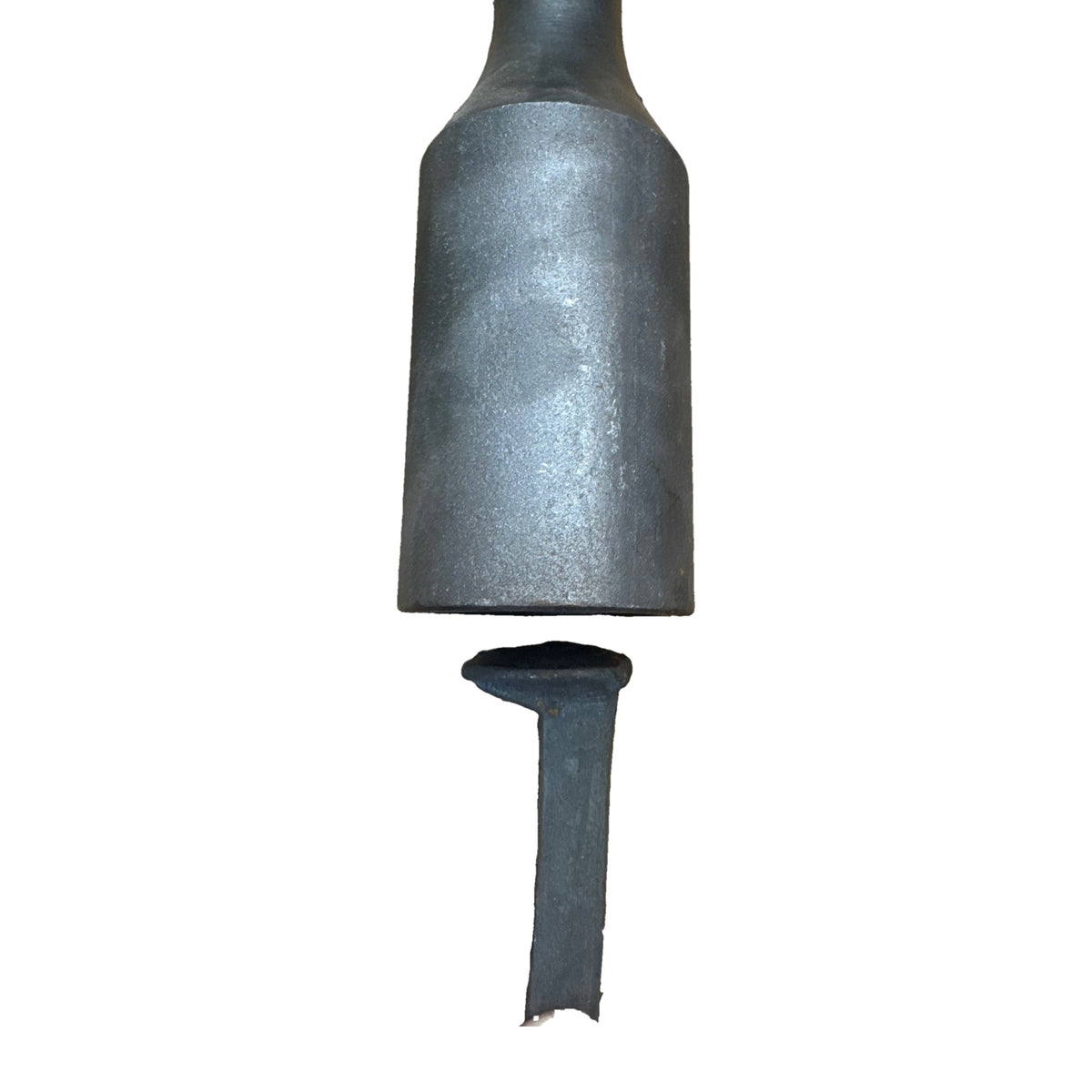

Cup-style railroad spike driver for 1-1/8" hex pneumatic breakers and paving breakers. The hollow driving head seats over the spike head so every blow lands square, helping reduce bounce and slipping off the spike. Forged and heat-treated in Canada for track crews that drive spikes all day.

Use it to drive new track spikes and re-spike loose or lifted rail into wood or composite ties during track construction, tie replacement and maintenance-of-way (MOW) work. It is a practical, air-powered alternative to swinging a spike maul, and it works with the 1-1/8" hex breaker your crew may already have on the truck.

Key Features

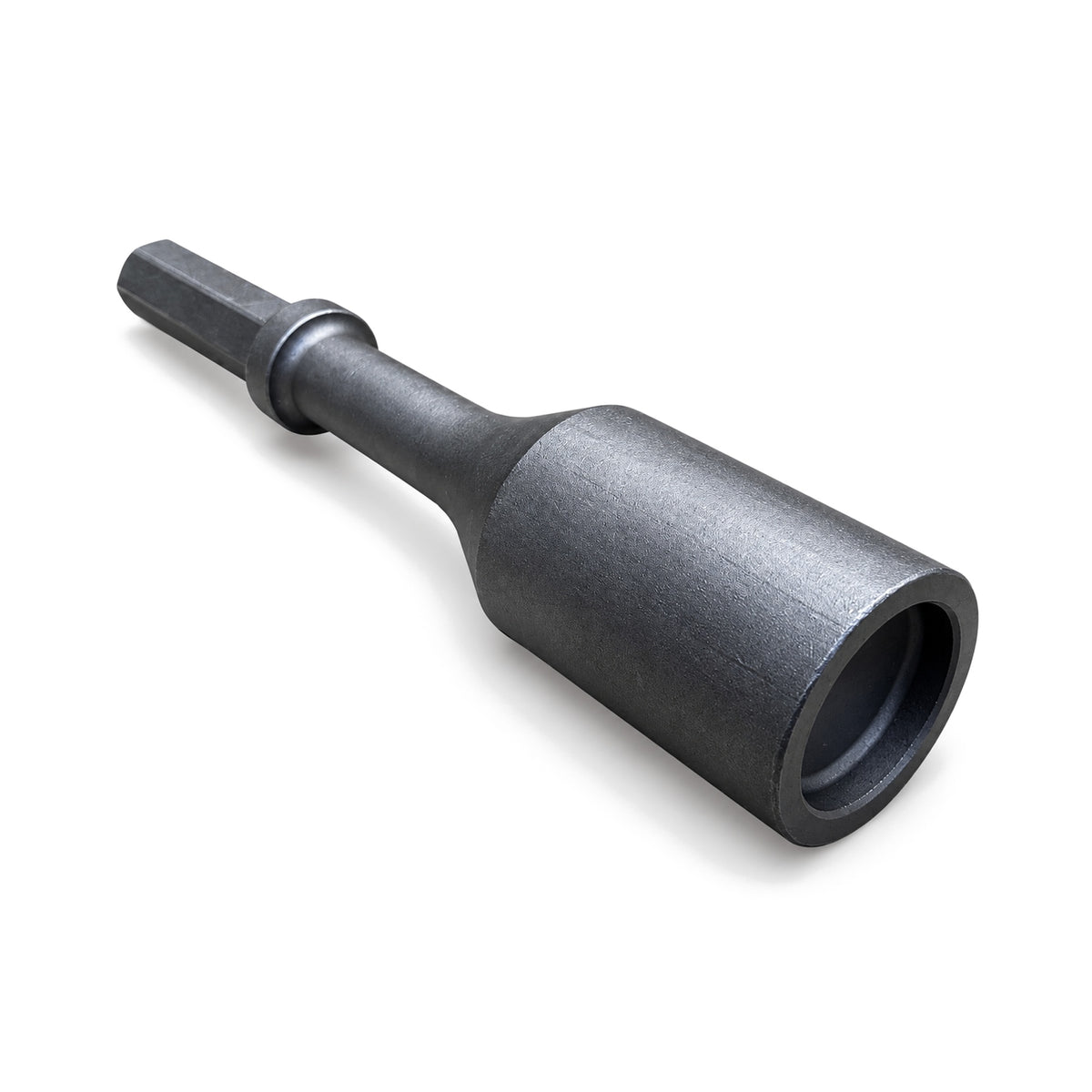

• Hollow cup head centres the blow on the spike head
• Forged steel body, heat-treated for impact resistance and long service life
• 1-1/8" hex shank, 6" long, with round retainer collar for pneumatic breakers
• One-piece construction, with no welded or threaded joints to fail under impact
• Manufactured in Canada by Madido

Specifications

• Type: Railroad spike driver (cup head)
• Shank: 1-1/8" hex × 6"
• Retention: Round collar
• Material: Forged steel
• Heat treatment: Heat-treated
• Designed for: Standard railroad track spikes (spike heads up to approx. 1-3/4")
• Tool compatibility: 1-1/8" hex pneumatic breakers, paving breakers and demolition hammers
• Origin: Made in Canada

Applications

• Track construction and rail laying
• Re-spiking and track repair
• Tie replacement and tie plate fastening
• Maintenance-of-way (MOW) crews, short line railways and railway contractors
• Industrial rail spurs, yards and plant track
• Switch and turnout maintenance

Also Searched As

Track spike driver, rail spike driver, spike driving tool, spike driver for jackhammer, spike driver for paving breaker, pneumatic spike driver bit, railway spike driver attachment, spike driving cup, 1-1/8 hex spike driver.

Please confirm your breaker's shank size (1-1/8" hex) and your spike head size before ordering. Contact Madido for quotes on larger quantities or other shank sizes.
